Mineralogy and thermobarometry of the Kalevian volcano-plutonic complex of the Kaskama block (Inari Terrane, Kola-Norwegian Region, Fennoscandian Shield)

Funding

The research was carried out at the expence of a grant from the Russian Science Foundation N 24-27-00041.

Introduction

The geological and tectonic structure of the Fennoscandian Shield in general and the Kola-Norwegian Region in particular is interpreted on the concepts of the block structure of the Earthʼs crust, based on fundamental differences in the tectonic development of upper crustal structures, the periodization of their endogenous evolution and the geophysical features of the deep lithosphere structure [1]. In recent decades, these concepts have been transformed into a “terrane” geodynamic paradigm. Terrane analysis has brought genetic meaning to the descriptive principles of tectonic zoning and ranking of Precambrian complexes (e.g., accretionary, dispersion, and composite terranes), which largely depends on the conceptual preferences of the authors (plate or plume tectonic). These ideas have evolved significantly due to the emergence of new isotopic data on the age of the upper crustal geological complexes and their deep pro-toliths.

For the Kola-Norwegian Region of the Fennoscandian Shield (Central Kola Terrane) (Fig.1, a) there are several views of geodynamic models of the lithosphere development in the Early Precambrian [2-4], which have a number of fundamental differences, mainly in the interpretation of the geodynamic nature of certain terranes. One of the key regions for the reconstruction of the orogenic development of the continental lithosphere of the Kola-Norwegian Region in the Early Precambrian is the Inari Terrane [5]. The largest and least studied part of the terrane is located between the Paleoproterozoic structures of the Pasvik-Polmak-Pechenga intracraton paleorift and the Lapland Granulite Belt and extends in the southeasterly direction over more than 300 km from the Caledonides to the territory of Northern Norway and Finland.

On the territory of Russia, the Inari Terrane, which spatially corresponds to the previously identified Kaskama block (block-anticlinorium) [2, 6], borders on the Lotta-Salnotundra block of the Lapland Granulite Belt in the southwest, and in the northeast its boundary runs along the volcanogenic-sedimentary complexes of the South Pechenga zone. The Inari Terrane spatially coincides in many respects with the Pechenga-Allarechka ore region [7], which determines the relevance of its study in the metallogenic aspect.

There are only general ideas about the structure of the Inari Terrane as a tectonic mixture (tectonic packages) of the Archean and Proterozoic complexes [3, 4, 8], and within the framework of theoretical geodynamic constructions this area is considered as part of the Inari-Tersk juvenile arc, which arose as a result of a two-stage collision with the subsequent formation of a secondary orocline [4, 8]. Such a diversity of geodynamic ideas is largely determined by the limited amount of modern petrological-geochemical and isotopic data [9-11].

In different years, in the northwest of the Kola Peninsula, within the limits corresponding to the modern concepts of the tectonic boundaries of the Inari Terrane, in large synclinal structures researchers identified the essentially volcanogenic Kaskama Formation of uncertain Neoarchean-Paleoproterozoic age. Nowadays, due to the obtained U-Pb isotope age (1,923-1,926 Ma) of acidic and middle metavolcanic rocks, the Kaskama Formation was assigned to the Kalevian suprahorizon of the Karelian complex [5, 6], which fundamentally changes the ideas about the geological structure and metallogenic zonation of the Pechenga-Allarechka ore region and the geodynamic nature of the Inari Terrane.

The goal of the work is to determine the conditions of petrogenesis of mantle magmatism and thermobaric evolution of the regional metamorphism of the volcano-plutonic complex of the Kaskam structure based on solving the problems of detailed petrography, analyzing the features of the chemical composition of minerals and determining the PT-parameters of metamorphic changes. The study is directed at obtaining new knowledge about the correlation of endogenous processes and comparing the geological structure and tectonic evolution of the adjacent blocks of the Kola-Norwegian Region, which is the most important tool for terrane analysis of the Fennoscandian Shield.

Methods

The study of the structure of minerals and analysis of their compositions were performed on a scanning electron microscope JSM-6510LA with EDS JEOL JED-2200 (IGGD RAS, analyst O.L.Galankina) at an accelerating voltage of 20 kV, current of 1 nA, with ZAF-method of correction of matrix effects. The detection limit of elements is 0.1 %. Photographs of minerals were obtained in the modes of compositional contrast (BSE) and secondary electron imaging (SEI).

Mineral geothermometers. We used for Ol-Cpx thermometry equation [12], based on Fe-Mg exchange between augite and olivine; for Cpx-Ol-Spl thermometry – the equation developed for spinel peridotites [13]; for Ol-Spl thermometry – the equilibrium equation by [14]; for the paragenesis of two pyroxenes geothermometers [15, 16]; for the paragenesis of amphibole with plagioclase – the geothermometer by T.Holland and R.Blandy [17]; for the paragenesis of garnet and amphibole – several thermometric tools, calibrations of which are given in [18-21]; for the paragenesis of garnet and biotite – a thermometer [22].

Mineral geobarometers –monomineral amphibole [23], garnet-amphibole-plagioclase [24-26], garnet-biotite-plagioclase for quartz-bearing rocks [27].

Calculation of stability fields of mineral paragenesis was performed using the Perple_X v.6.9.1 [28] with updates up to 2022. In calculations we used the thermodynamic database hp62ver [29] for minerals and solid solutions of clinoamphibole cAmph(G), orthoamphibole oAmph(DP), clinopyroxene Omph(GHP), olivine O(HP), talc T, biotite Bio(TCC), feldspars, chlorite Chl(W), garnet Gt(W), spinel Sp(WPC), orthopyroxene Opx(W), white mica Mica(CHA), chloritoid Ctd(W), staurolite St(W), ilmenite Ilm(WPH) in the MnTiNCKFMASH-CO₂ system (MnO-TiO₂-Na₂O-CaO-K₂O-FeO-MgO-Al₂O₃-SiO₂-H₂O), as well as the model of silicate melt(G) [30, 31].

The order of crystallization of minerals was determined in a rock of peridotite composition together with an estimate of liquidus temperatures for olivine, pyroxenes, plagioclase and magnetite were determined together with the estimations according to the equations of mineral-melt system based on COMAGMAT 3.73 software package[32].

Representative chemical analyses of the main rock varieties of the Kaskama Formation (Table 1) and about 400 microprobe analyses of minerals were used to model mineral formation and estimate PT-parameters. Abbreviations of mineral names are given according to [33], and calculation of mineral formulas according to [34].

The geological structure of the region and composition of rocks

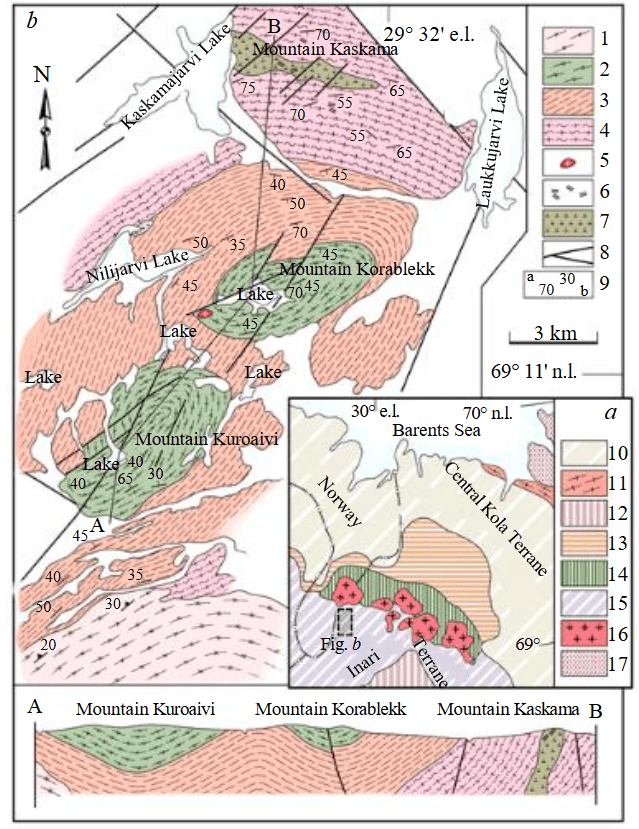

In the northwestern part of the Kola Peninsula, the most preserved and accessible fragment of the Kaskama Formation supracrustal complex are two associated synclinal structures over 25 km long in the Kuroaivi, Korablekk, Kaskama, Shuort tundra, 40 km southwest of the Pechenga structure (Fig.1, а).

The lower part of the section of the volcano-sedimentary complex of the Kaskama Formation (over 3,000 m) is represented mainly by various amphibolites and Grt-Bt-Amp schists, which corresponds to tholeiitic and aluminous metabasalts (Table 1). A characteristic feature of the crossection is the presence of metaultramafic bodies, amphibolites, and actinolite-chlorite schists, 15-20 m  thick and more than 300 m long, the chemical composition of which corresponds to komatiites and komatiite basalts (Table 1). The structural and geological position of these rocks allows us to consider some of them as metamorphosed volcanic flows, sills and hypabyssal intrusions, and the largest massifs are probably pre-folded intrusions of peridotites. The overlying middle stratum of garnet-biotite-amphibole gneisses and plagioschists with amphibolite interlayers composes two synclinal structures (Fig.1, b). In the upper part of the middle strata there are several units of fine-grained plagioschists, leucocratic biotite-feldspar gneisses and amphibolites with a thickness of 20-30 m, which are considered as metamorphosed analogues of felsic and intermediate volcanics and their tuffs (Table 1).

Table 1

Content of petrogenic oxides in the main types of rocks of the Kaskama Formation, wt.%

Notes. al' = Al₂O₃/(MgO + Fe₂O₃ + FeO) – alumina content index, wt.%. CIA = 100 × [Al₂O₃/(Al₂O₂ + CaO + Na₂O + K₂O)] – chemical index of alteration, mol.%. 1-4 – metaperidotites; 5, 6 – garnet-amphibole schist and garnet-epidote-containing amphibolite (aluminous metabasalts); 7 – epidote-containing amphibolite (metaandesite); 8, 9 – amphibole-plagioclase schist and migmatized garnet-amphibole-plagioclase schist (acid metavolcanics).

The core parts of the synclines (Fig.1) are composed of the upper strata of the Kaskama Formation, represented mainly by fine- to medium-grained slate and massive amphibolites with interlayers of actinolite-chlorite schist similar in composition to komatiite basalts and tholeiitic and aluminous metabasalts of the lower strata of the section.

Petrographic and mineralogical description of rocks and features of chemical composition of minerals

Metamorphosed peridotite (samp. 104, 20-3d, 106, 18-5b)

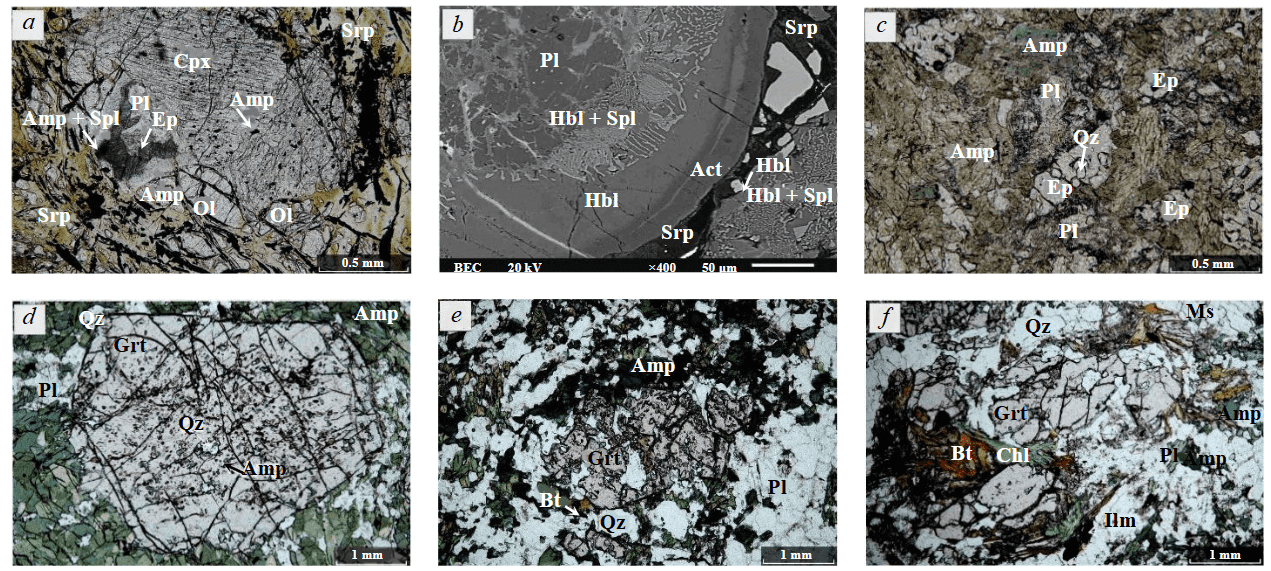

Petrography. Amount of the minerals in the rocks, vol.%: olivine 20-40; orthopyroxene up to 5; hornblende up to 10; clinopyroxene 20-40; plagioclase 20-30; green spinel up to 5. In massive rocks from sills and hypabyssal intrusions an early (magmatic) paragenesis consisting of olivine (later serpentinized), clinopyroxene, orthopyroxene, plagioclase, and spinel is rather clearly diagnosed. Metamorphic minerals include amphibole, epidote, chlorite, spinel, and magnetite. Olivine forms colorless isometric grains up to 1-1.5 cm in size and has a reticulate structure due to multiple cracks (Fig.2, а, b), filled with serpentine, which contains new formed magnetite. Light-green tremolite develops along the edge of olivine grains, and worm-like spinel outgrowths (Fig.2, b), oriented perpendicular to the rim develop at the contact with plagioclase. Clinopyroxene occurs both in inclusions in olivine and as xenomorphic grains in the matrix. It is often replaced by amphibole along grain margins and along cleavage cracks. Orthopyroxene is developed in the form of single small xenomorphic grains, as a rule, at the contact with olivine in the form of a thin border between olivine and amphibole. Green spinel is located both in the matrix as large individual grains and in symplektitic concretions  with  amphibole.  Plagioclase  often  has polysynthetic twinning and is preserved and recognized within the amphibole-spinel symplectite. Clusters of epidote-zoisite units are observed in plagioclase. In some places large grains of hornblende (up to 2 mm) saturated with ilmenite inclusions are observed. Local replacement of amphibole by actinolite-tremolite assemblage together with needles of chlorite is also noted.

Mineral composition. Olivine as forsterite with Х_Mg = Mg/(Mg + Fe) = 0.72-0.75 in large grains, in small grains has Х_Mg = 0.66 without Cr₂O₃ impurity, in single analyses NiO content up to 0.28 wt.%, and also there is a constant addition of MnO – 0.19-0.74 wt.%. Clinopyroxene is represented by diopside with Х_Mg = 0.86-0.94, small addition of Cr₂O₃ up to 0.41 wt.%, TiO₂ up to 0.31 wt.% and MnO up to 0.22 wt.% in separate grains, Al₂O₃ content – 0.54-2.8 wt.%. The highest aluminum content is detected in clinopyroxene, which forms inclusions in olivine. Orthopyroxene corresponds to enstatite with Х_Mg = 0.74-0.79, and contains addition of MnO (0.33-0.72 wt.%) and Al₂O₃ (0.51-1.65 wt.%). Plagioclase mostly is anorthitic in composition (An = 94-100 %).

Spinel corresponds to Hc_43-54Spl_44-54Mg_2-4, contains a small admixture of zinc (ZnO = 0.11-0.49 wt.%), manganese (MnO = 0.26-0.9 wt.%). No obvious differences in the composition of large spinel grains and its sprouting in the form of symplectites were revealed.

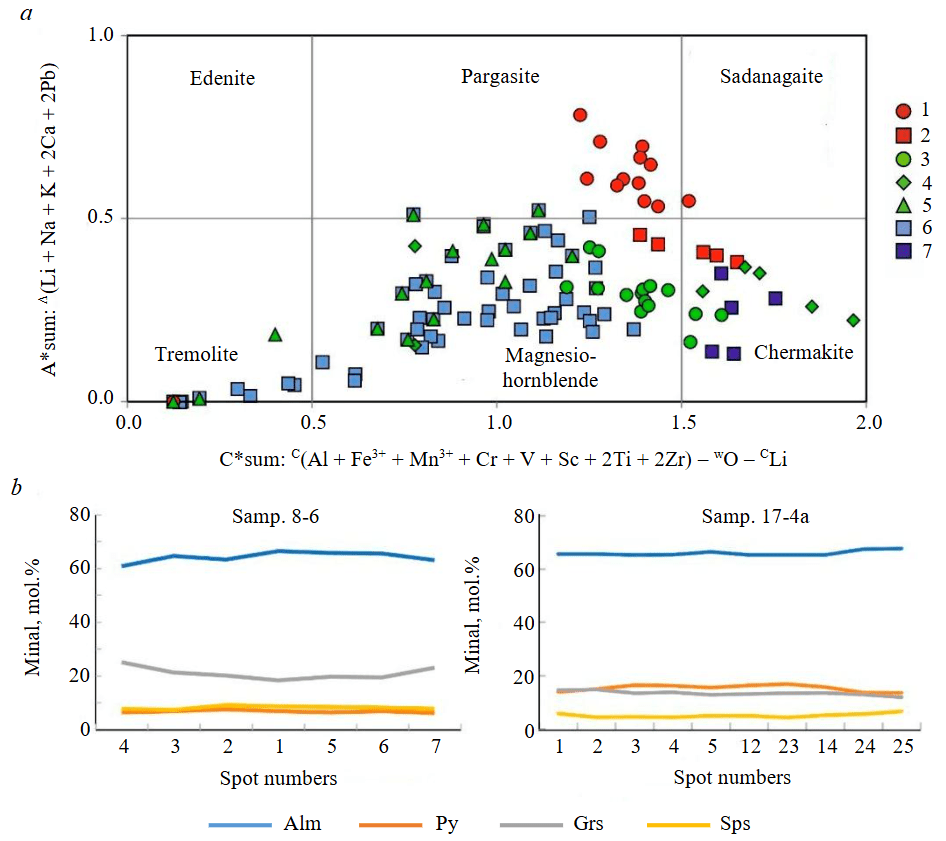

Amphibole is mainly represented by magnesio-hornblende (Fig.3, а) with Х_Mg = 0.79-0.89. In symplectite with spinel, amphibole is more rich Al₂O₃: it corresponds to chermakite with Al₂O₃ = 14.2-17.5 wt.%, and in the rim – to hornblende with Al₂O₃ = 5.5-13.4 wt.%. The symplectite also contains larger portions of hornblende, with composition corresponding to those in the rims. The hornblende, developing upon clinopyroxene, contains a highly addition of TiO₂ = 0.1-0.75 wt.%.

Aluminous metabasalt (epidote-bearing amphibolite, samp. 8-12)

Petrography. Amount of minerals, vol.%: epidote up to 10; plagioclase up to 20; amphibole up to 55; quartz up to 15; chlorite up to 5; accessory apatite, titanite, and magnetite. The rock texture is mainly poikiloblastic, granonematoblastic, and the structure is massive. In the epidote-amphibole matrix there is no noticeable preferential orientation of minerals (Fig.2, c). Epidote up to 0.5 mm, contains rounded inclusions of quartz, allanite. Plagioclase   is   altered,   grain   size   up  to  0.3  mm,  replaced  by  zoisite.  Amphibole  is  light-green, cracks, replaced by chlorite. Quartz is rounded grains up to 0.1 mm in close association with epidote, it is also found in small amount in inclusions in amphibole. In lightened areas of the rock, epidote with quartz inclusions has grain size up to 0.5 mm, plagioclase is more altered, and quartz grains become larger – up to 0.4 mm.

Mineral composition. Plagioclase in amphibolite is andesine (An = 44-53 %), but in case of replacement by epidote it is close to pure albite (An = 2-16 %). Amphibole is represented by pargasite and magnesio-hornblende (Fig.3, a), in association with chlorite early amphibole is replaced by actinolite. In the more leucocratic part of the rock, the magnesio-hornblende is a little more ferrous with Х_Mg = 0.53-0.65, contains more ТiO₂ (0.37-0.85 wt.%), Na₂O (0.76-1.55 wt.%) и Al₂O₃ (7.92-14.0 wt.%), less Сl (0.11-0.28 wt.%) than magnesio-hornblende with Х_Mg = 0.61-0.70 in amphibolite, contains ТiO₂ (0.40-0.81 wt.%), Na₂O (0.6-1.6 wt.%), Al₂O₃ (7.4-11.4 wt.%), Сl (0.15-0.19 wt.%). The later actinolite has a Х_Mg = 0.71-0.72 and contains ТiO₂ (0-0.61 wt.%), Na₂O (0-0.23 wt.%), Al₂O₃ (0.75-5.41 wt.%), Сl (0-0.08 wt.%).

Aluminous metabasalt (garnet-epidote-bearing amphibolite, samp. 17-3a)

Petrography. Mineral composition, vol.%: amphibole up to 65; plagioclase up to 15; epidote up to 10; quartz 10; single grains of garnet; secondary minerals – chlorite, accessory ilmenite. It is a coarse-grained heterogeneous rock in which the amphibole-plagioclase matrix contains porphyroblasts of amphibole up to 4 mm in size and single garnet grains up to 2 cm in size (Fig.2, d). Amphibole grains with abundant inclusions of ilmenite needles and rounded quartz grains up to 0.1 mm in size, as well as smaller amphibole grains without inclusions, occur. Garnet porphyroblasts sometimes contain inclusions of large (up to 1 mm) grains of epidote-zoisite and ilmenite, as well as quartz, plagioclase, and amphibole in the core; the rims do not contain inclusions. Leucocratic parts of the rock are represented by quartz-epidote-plagioclase aggregates. Plagioclase grains up to 1 mm in size with polysynthetic twins are placed between amphibole grains. Epidote and zoisite develop on plagioclase. Chlorite develops in separate grains on amphibole.

Mineral composition. Garnet is grossular-almandine Py_9-14Alm_65-72Sps_2-5Grs_15-19. There is a tendency for the grossular and pyrope to increase towards the rim with a decrease in almandine. Amphibole next to garnet is represented by magnesio-hornblende with Х_Mg = 0.55-0.56, contains ТiO₂ (0.68-0.77 wt.%), Na₂O (0.68-0.82 wt.%), Al₂O₃ (7.16-7.50 wt.%), cummingtonite with Х_Mg = 0.44 at the contact with garnet and at the rim of hornblende; in the garnet-free matrix amphibole is represented by ferri-chermakite with с Х_Mg = 0.39-0.44 and contains ТiO₂ (0.14-0.35 wt.%), Na₂O (1.17-1.62 wt.%), Al₂O₃ (17.3-20.1 wt.%). Plagioclase is heterogeneous, characterized by more felsic inclusions (An = 52-68 %, labrador) in more basic grains (An = 87-92 %, bytownite-anorthite), at the contact with garnet plagioclase has the composition of labrador (An = 54-64 %). Chlorite in the form of large grains ~3 мм mm at the contact with amphibole has Х_Mg = 0.57-0.58.

Aluminous metabasalt (garnet-amphibole shale, samp. 101-1)

Petrography. Amount of minerals, vol.%: garnet up to 15; amphibole 50; plagioclase up to 25; quartz up to 10. In the plagioclase-amphibole matrix of the rock there are porphyroblasts of garnet with well-formed grain up to 1.5 cm in size. These porphyroblasts contain many inclusions of quartz, plagioclase, and amphibole in the core of the grains, the rims of the grains are without inclusions. Plagioclase, with grain size up to 0.5 mm, together with amphibole up to 0.6 mm, is arranged parallel to layering, thus surrounding the garnet porphyroblasts (see Fig.2, d).

Mineral composition. Garnet is pyrope-almandine Py_22-26Alm_58-63Sps_3-4Grs_11-16 with minor zoning, showing a decrease of pyrope with an increase of the grossular and almandine toward the grain rim. In the matrix, plagioclase is a composition of bytownite (An = 78-82 %), to the contact with garnet and amphibole some grains have a slight zoning – the content of anorthitic component decreases up to An = 48-58 %. In the garnet inclusions, the plagioclase composition is more basic (An = 86-87 %) than in the matrix. Amphibole is a composition of magnesio-hornblende (Fig.3, а), at the contact with garnet it is closer to chermakite with Х_Mg = 0.57-0.66, contains ТiO₂ = 0.41-0.83 wt.%, Na₂O = 1.04-1.67 wt.%, Al₂O₃ = 14.2-15.11 wt.%.

Metarhyolite (amphibole-plagioclase schist, samp. 8-6)

Petrography. Amount of minerals, vol.%: amphibole up to 20; plagioclase up to 30; quartz up to 50; single grains of biotite, chlorite, and garnet, accessory ilmenite, apatite, zircon. The rock consists of green, light-green amphibole with grain size up to 2 mm, elongated parallel to layering. Inclusions of accessory minerals and quartz occur in the amphibole. The texture is heterogeneous: in the more leucocratic part there is an enlargement of amphibole grains up to 3 mm, while their number becomes noticeably smaller. In the most leucocratic parts of the rock there are only single grains of amphibole between quartz grains. Amphibole is partially chloritized. Biotite occurs in the form of thin grains. Closer to the garnet, biotite becomes noticeably more abundant, where it is intergrown with amphibole, and in some places, it develops on altered plagioclase. Plagioclase often with twins, grain size up to 3 mm, with their size increasing in the leucocratic part up to 5 mm, it is subjected to replacement by carbonate-mica aggregate (not more than 10 vol.%). In the leucocratic part, plagioclase grains, as well as quartz ones, are elongated along the direction of layering and often with corroded rims. Sometimes plagioclase contains quartz and amphibole inclusions. Single garnet grains occur in both melanocratic and leucocratic parts. The size of garnet in the melanocratic part of the rock is larger (up to 2 mm) than in the leucocratic (up to 1 mm). In the leucocratic part, garnet is replaced by chlorite in association with ore (ilmenite) and later plagioclase (albite).

Mineral composition. The composition of amphibole in the leucocratic part is more ferrous with Х_Mg = 0.25-0.32, in addition to ferro-pargasite there is also hastingsite (see Fig.3, а). The content of ТiO₂ = 0.59-1.14 wt.%, Al₂O₃ = 13.5-14.7 wt.%, Na₂O = 1.42-1.89 wt.%, Сl = 0.33-0.48 wt.%. In the melanocratic part of the rock amphibole is represented by ferro-pargasite with Х_Mg = 0.29-0.32, contains ТiO₂ = 0.46-1.16 wt.%, Al₂O₃ = 13.7-15.1 wt.%, Na₂O = 1.3-1.86 wt.%, Сl = 0.25-0.40 wt.%. Biotite of the investigated sample belongs to ferrous varieties (X_Mg = 0.35) with predominance siderophyllite and contains TiO₂ (3.3-3.4 wt.%). The composition of plagioclase within the sample is homogeneous (An = 26-29 %) and corresponds to oligoclase, except for its rims around garnet, where its composition is more felsic (An = 8-10 %). Grossular-almandine garnet Py_6-7Alm_61-66Sps_7-9Grs_18-25 in the leucocratic part and Py_7-8Alm_62-65Sps_8-9Grs_19-23 in the melanocratic part, are in association with amphibole. These garnets are equally characterized by a decrease in almandine and spessartine and an increase in grossular from core to rim (Fig.3, b).

Metarhyodacite (migmatized garnet-amphibole-plagioclase schist, samp. 17-4a)

Petrography. Amount of minerals, vol.%: garnet up to 5; amphibole up to 20; plagioclase up to 30; quartz up to 45; single grains of biotite, muscovite and chlorite, accessory ilmenite. The rock is heterogeneous and represents migmatized garnet-bearing amphibolite. Garnet porphyroblasts up to 1 cm in size at the contact with the leucocratic part (see Fig.2, e, f) with abundant quartz and plagioclase inclusions. The sample under consideration differs from the previous sample by larger grain sizes, absence of preferred orientation of minerals, greater development of chlorite both in association with amphibole and developing on garnet. Together with chlorite there are biotite and muscovite, which in some places develop on plagioclase. Accessory minerals are represented by ilmenite with inclusions of rutile, which in turn develops titanite.

Mineral composition. Garnet is grossular-pyrope-almandine Py_11-18Alm_65-71Sps_4-9Grs_9-15. It is characterized by an increase almandine and spessartine and a decrease pyrope and grossular from core to rim (Fig.3, b). The most ferrous composition has garnet replaced by chlorite, Py_11-13Alm_70-71Sps_7-9Grs₁₀. Plagioclase has oligoclase (An = 28-31 %), the greatest changes are observed in plagioclase in the leucocratic part of the rock, where plagioclase becomes slightly more anorthitic (An = 33 %). Amphibole in the rock is represented by magnesio-hornblende and chermakite (Fig.3, а) with Х_Mg = 0.42-0.46, contains ТiO₂ (0.20-0.44 wt.%), Na₂O (1.54-1.66 wt.%), Al₂O₃ (16.6-17.55 wt.%). Chlorite is more ferrous at the contact with garnet, possibly developing over amphibole, Х_Mg = 0.43-0.47. Chlorite developing on small garnet grains and plagioclase has Х_Mg = 0.31-0.39.

Magmatic stage of crystallization

To determine the PT-conditions of crystallization of magmatic minerals the compositions of metamorphosed peridotites were used – samples 104, 106, 18-5b, 20-3d (Tables 1, 2), in which the structural and textural features and minerals of the magmatic stage of rock formation were well preserved.

Table 2

Liquidus temperatures of mineral crystallization of the rocks of peridotite composition of the Kaskama Formation, °С

Notes. Liquidus temperatures are calculated using the mineral-melt equations from the COMAGMAT 3.73 [32].

The identified primary mineral paragenesis consisting of olivine, two pyroxenes, plagioclase with some amount of magnetite-spinel is well reproduced by model of equilibrium crystallization in COMAGMAT program (Fig.4). In this case, in addition to the coincidence of the composition of minerals during their formation from the melt, the volume ratios established by petrographic data are also reproduced. In addition to reproducing the order of mineral crystallization and their amount, the results of modeling showed a good correspondence between the calculated compositions of minerals (olivine, pyroxenes, and plagioclase) and those actually observed in the rocks. In particular, magnesium number in olivine decreases from ~ 0.94 to 0.70, and plagioclase changes from almost pure anorthite to bytownite, demonstrating a decrease in the number of plagioclases with decreasing of crystallization temperature (Fig.4, а).

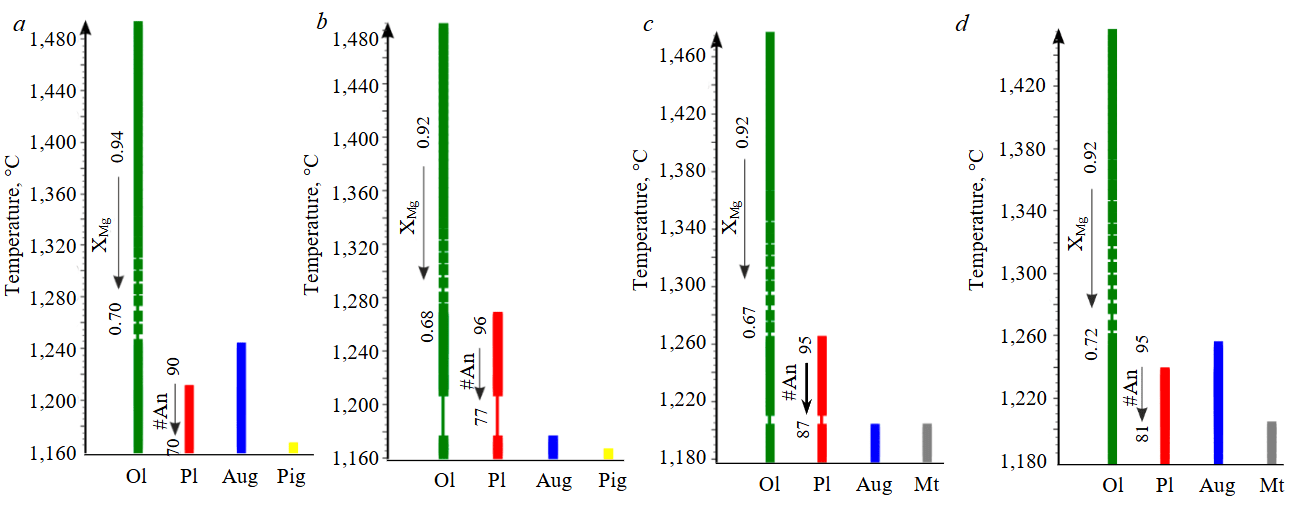

Additionally, the temperatures and crystallization sequence of minerals obtained using the equilibrium equations in the mineral-melt system were calculated (Table 2). The temperature calculation equations of the COMAGMAT software package showed that the liquidus temperatures for olivine and pyroxenes are in the range of ~1,500-1,200 °C. For plagioclase, the equilibrium temperature in the plagioclase-melt system is determined as 955 °C, but the first crystallization of the mineral begins at T = 1,202 °C.

PT-conditions of metamorphism

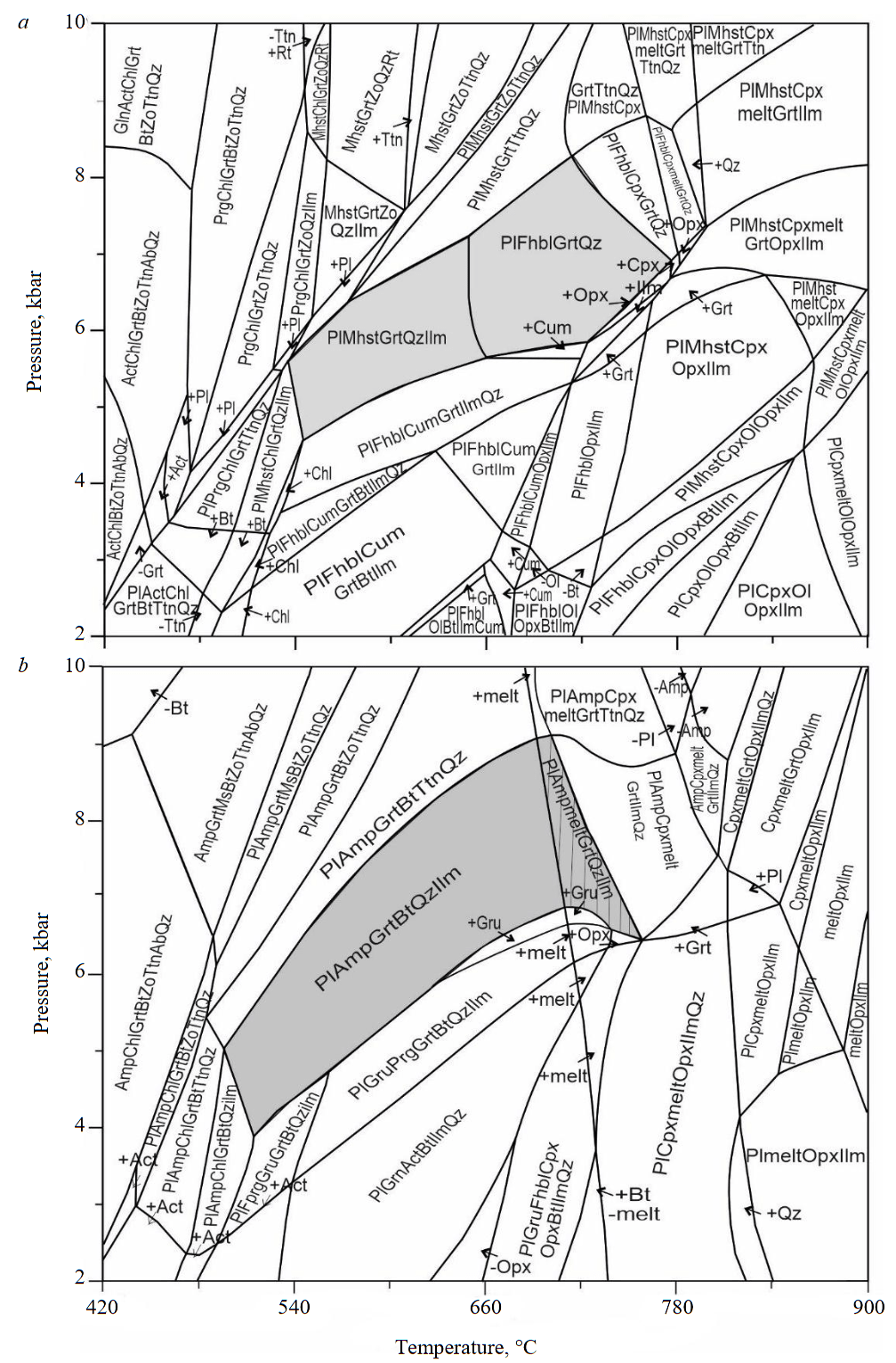

To assess the thermodynamic stability regimes of mineral parageneses with changing P and T for the studied main types of rocks (see Table 1), the method of constructing pseudo-sections was used. In addition to assessing the stability of mineral parageneses with changing pressure and temperature regimes, variations in the CO₂ and H₂O ratio in the assumed dioxide-water fluid were evaluated. The calculations showed that the most relevant (corresponding to the observed) results are obtained using pure aqueous fluid without CO₂ admixture. Using the Perple_X [28], phase diagrams were constructed for rocks corresponding to the composition of the initial protolith (Fig.5). The diagrams reproduce well the association of metamorphic minerals observed in thin sections.

The widespread metamorphic mineral paragenesis in the rocks, consisting of garnet, amphibole, plagioclase, and secondary clinopyroxene, is modeled in the area of average values of pressure and temperature – Т ~700 °С; Р ~5-7 kbar. The range of P and T corresponds to the superposition of isopleths of these minerals, close to the real compositions of minerals according to microprobe analysis data.

The migmatization observed in some rocks (for example, in garnet-amphibole-plagioclase schist, samp. 17-4a) allows us to narrow down considerably the possible PT-field of metamorphic mineral formation. Thus, considering the appearance of anatectic melt in the studied rock, the PT-filed of metamorphic is estimated as T = 710-760 °C and P = 6-8 kbar (Fig.5, b).

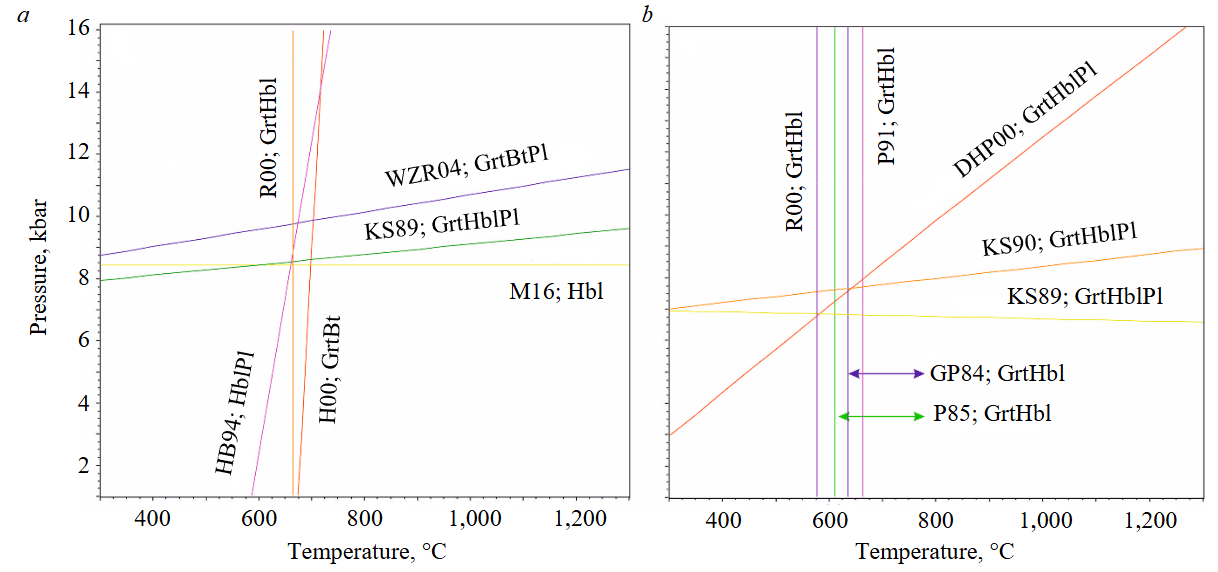

The results of classical mineral thermobarometry do not contradict the estimates of P and T mineral formation obtained by the pseudo-section method. For rocks that have preserved magmatic and metamorphic mineral paragenesis (e.g., sample 104), pressures and temperatures corresponding to the magmatic stage of mineral crystallization and the subsequent medium-temperature and medium-baric regime of metamorphic transformations are revealed (Table 3). The use of mineral thermometers and barometers based on the chemical compositions of coexisting minerals to certain values of pressure and temperature allowed us to determine the high-temperature stage of mineral formation (olivine-spinel-pyroxene, pyroxene thermometers), correlated with the stage of magmatic crystallization of minerals and melt.

The predominant majority of mineral geothermometers using the compositions of amphiboles, biotites, plagioclases, and garnets indicate a metamorphic temperature of rocks in the range of ~580-700 °С at a pressure of 5-9 kbar (Fig.6).

Table 3

PT-parameters of the rocks of the Kaskama Formation

Notes. Geothermometers: L96 [12], MG15 [13], GP84 [18], P91 [20], P85 [19], R00 [21], HB94 [17], H00 [22]; geobarometers: DHP00 [25], KS89 [24], M16 [23], WZR04 [27].

The thermobarometry results are consistent with the observed mineral parageneses in rocks of the Kaskam structure of both the magmatic and metamorphic stages. It should be noted that in recent years the success of using thermobarometric tools to assess the conditions of formation of mineral parageneses in both magmatic [37-40] and metamorphic has been repeatedly demonstrated [41-46].

It was possible to trace the evolution of thermodynamic regimes of petrogenesis in different tectonic settings, for example, subduction zones [47-49] or under extreme temperature conditions [44].

Many works are devoted to the reconstruction of PT-parameters of metamorphism based on the use of geochemical features of minerals [50-52] or on numerical model reconstructions of mineral formation [53-55]. This approach has shown promise for rocks of different compositions and contrasting geodynamic settings of the occurrence [56-58].

Conclusion

Modeling with Gibbs energy minimization of magmatic and metamorphic mineral formation in the rocks of the Kaskama Formation showed good convergence the stability of mineral paragenesis and quantitative ratio of minerals with those observed in real samples. Estimates of PT-parameters of metamorphic mineral formation using a set of modern mineral thermometers and barometers, which consider compositions of a larger number of coexisting minerals, satisfactorily reveals the stability fields of mineral paragenesis. It allows us to distinguish two stages of mineral formation. The first magmatic stage corresponds to crystallization of olivine, clinopyroxene, orthopyroxene, magnetite-spinel from komatiite melt in the temperature range of 1,480-950 °С. The second stage of mineral formation corresponds to progressive metamorphism and its low-temperature regressive path. The progressive path of metamorphic changes is recorded in all groups of rocks of the Kaskama Formation and is characterized by extensive development of mineral paragenesis: garnet + amphibole + plagioclase + quartz ± biotite, amphibole + plagioclase + quartz. The late part (low-temperature regressive) of the path of metamorphism is characterized by the development of epidote-, zoisite-, and actinolite-bearing paragenesis, as well as serpentine, chlorite, and other low-temperature minerals by minerals forming the early paragenesis. The peak parameters of a regional metamorphism (Т= 600-700 °С, Р = 5-9 kbar) and its regressive part (Т = 400-500 °С, Р= 3-5 kbar) for rocks of the Kaskama block are different from the peak parameters obtained for the South Pechenga zone (Т = 590-750 °С, Р = 9.5-10.6 kbar [59] and Т = 630-690 °С, Р ~5 kbar). These results indicate that there are no signatures of early high-pressure metamorphism (reaching the eclogite facies), as suggested in the previous studies [35].

The results of the conducted studies should be taken into account when determining the belonging of the Kaskama block to one or another Paleoproterozoic terrane of the Kola-Norwegian Region of the Fennoscandian Shield.
